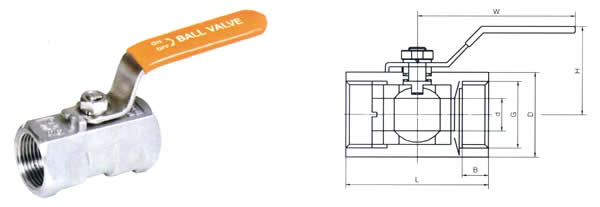

| 主要外形和連接尺寸 單位：mm |
|
公稱通徑 DN
|
PN1.6/2.5/4.0MPa，Class 150Lb/Class 300Lb
|
WT(kg)
|
|
L
|
d
|
G
|
D
|
B
|
H
|
W
|
|
6
|
60
|
8
|
1 1/4
|
30
|
11.5
|
56
|
110
|
0.26
|
|
10
|
60
|
10
|
3 1/8
|
31
|
11.5
|
58
|
110
|
0.30
|
|
15
|
60
|
10
|
1 1/2
|
32
|
14
|
58
|
110
|
0.36
|
|
20
|
67
|
13.5
|
3 1/4
|
38
|
15
|
62
|
110
|
0.45
|
|
25
|
73
|
18
|
1”
|
45
|
15
|
68
|
110
|
0.65
|
|
32
|
90
|
22
|
1 1/4”
|
54
|
18
|
75
|
150
|
0.95
|
|
40
|
98
|
26
|
1 1/2”
|
63
|
19
|
83
|
150
|
1.47
|
|
50
|
112
|
32.8
|
2”
|
73
|
19
|
90
|
180
|
1.94
|
|
|
|

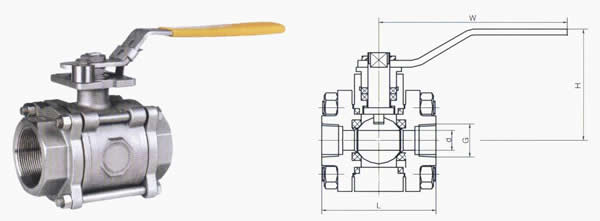

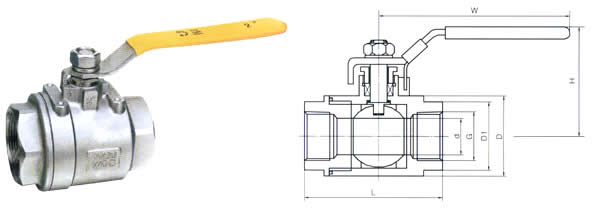

| 主要外形和連接尺寸 單位：mm |
|
公稱通徑
DN
|
PN1.6/2.5/4.0MPa，Class 150Lb/Class 300Lb
|
WT(kg)
|
|
L
|
d
|
G
|
D
|
D1
|
H
|
W
|
|
10
|
80
|
10
|
3”/8
|
45
|
31.2
|
72
|
140
|
0.62
|
|
15
|
90
|
10
|
1”/2
|
48
|
34.6
|
76
|
140
|
0.87
|
|
20
|
100
|
13.5
|
3”/4
|
58
|
41.6
|
81
|
160
|
2
|
|
25
|
115
|
18
|
1”
|
66
|
53.1
|
92
|
180
|
4
|
|
32
|
130
|
22
|
1 1/4”
|
80
|
63.5
|
112
|
200
|
5
|
|
40
|
150
|
26
|
1 1/2"
|
9
|
69.3
|
121
|
250
|
7.5
|
|
50
|
180
|
32.8
|
2”
|
114
|
86.5
|
137
|
300
|
10
|
|
|
|
| 主要外形和連接尺寸 單位：mm |
|
公稱通徑
DN
|
PN1.6/2.5/4.0MPa Class 150Lb/Class 300Lb
|
WT(kg)
|
|
L
|
d
|
G
|
H
|
W
|
|
10
|
65
|
8
|
3”/8
|
40
|
110
|
0.6
|
|
15
|
75
|
11
|
1”/2
|
46
|
110
|
0.72
|
|
20
|
80
|
14
|
3”/4
|
54
|
110
|
0.9
|
|
25
|
90
|
21
|
1”
|
64
|
140
|
1.7
|
|
32
|
110
|
25
|
1 1/4”
|
69
|
140
|
1.9
|
|
40
|
120
|
32
|
1 1/2”
|
76
|
155
|
3.1
|
|
50
|
140
|
38
|
2”
|
86
|
180
|
4.3
|
|
|
|
|

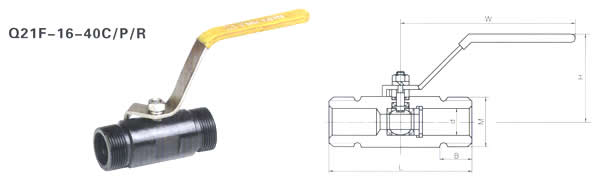

外螺紋連接球閥 Q21F-16-40C/P/R
|
| 主要外形和連接尺寸 單位：mm |
|
公稱通徑 DN
|
PN1.6/2.5/4.0MPa Class 150Lb/Class 300Lb
|
WT(kg)
|
|
L
|
d
|
M
|
B
|
H
|
W
|
|
6
|
60
|
8
|
M20×1.5
|
15
|
38
|
110
|
0.4
|
|
10
|
60
|
10
|
M24×1.5
|
16
|
40
|
110
|
0.45
|
|
15
|
60
|
10
|
M30×2
|
18
|
42
|
110
|
0.5
|
|
20
|
67
|
13.5
|
M36×2
|
18
|
62
|
110
|
0.6
|
|
25
|
73
|
18
|
M42×2
|
20
|
68
|
110
|
0.9
|
|
32
|
90
|
22
|
M52×2
|
20
|
75
|
150
|
1.4
|
|
40
|
98
|
26
|
M60×2
|
25
|
83
|
150
|
2.1
|
|
50
|
112
|
32.8
|
M72×2
|
25
|
90
|
150
|
2.6
|
|
